Air Lift Performance 3S Management Pack
Air Lift Performance 3S Management Pack

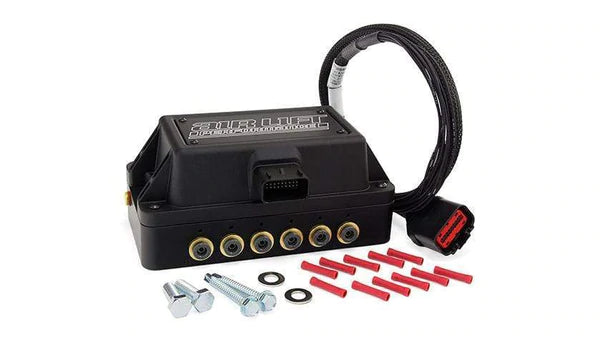

The 3S is Air Lift Performances new standalone Control System. This is a more basic system compared to the 3P and 3H systems. Manifold looks just like 3P/3H but it has threaded ports on the back side so you can add pressure sensors or run gauges. There's no sensors inside the manifold.
You can run the system via the App only, or you can run a 3P/3H controller, V2 controller or a switch box of some sort like the AVS switch box.
3S Features
-Manually inflate or deflate up to 4 individual air springs (no pressure sensors so no automatic control)
-Available in ¼” PTC and 3/8” PTC manifold versions
-Works with pressures up to 200psi
-Same manifold size\footprint as 3H/3P
-Valve control and Bluetooth integrated into the manifold
-1/8” NPT ports on rear of manifold to support 5 pressure sensors (FL, FR, RL, RR, Tank) for pressure monitoring
-Four harness versions available:
- App Only (3 wire install)
- Manual Switchox (11 wire install)
- ALP3 Display for 3S (3 wire + USB connector)
- APV2 Display for 3S (3 wire + JST connector)

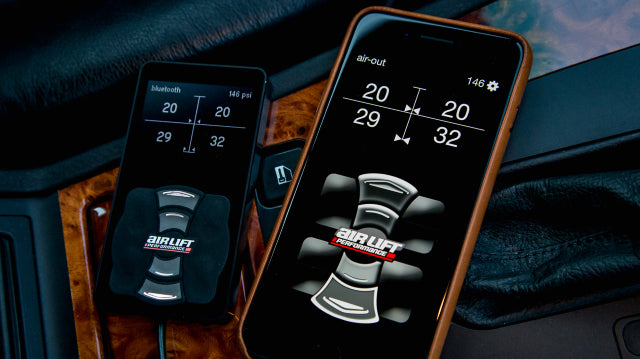

-All versions work with the free iOS and Android App for 3S
-The free App supports configuring 3 time based presets which can be used to inflate or deflate multiple air springs with a double tap
-The ALP3 display for 3S can be used to activate the time based presets that are configured using the App
-Two configurable buttons on the App and the ALP3 display for 3S
-The ALP3 display for 3S can be software updated to a 3H display if a customer wants to upgrade to a 3H system.
-Switchbox harness version can be used with any aftermarket switchbox such as AVS that provide 12V to the 3S manifold valve input wires when activated
-In conjunction with the switchox harness version, the 3S can be used with other 4 corner aftermarket air suspension controllers that use 12V activation on the standard eight trigger wires (FL Inflate, FL Deflate, FR Inflate, FR Deflate, RL Inflate, RL Deflate, RR Inflate, RR Deflate)
-The manifold supports wake-on-Bluetooth which allows users to operate the system while ignition is off. You can wake the system up with your phone from outside the vehicle and it will power down after 1min of App inactivity.
