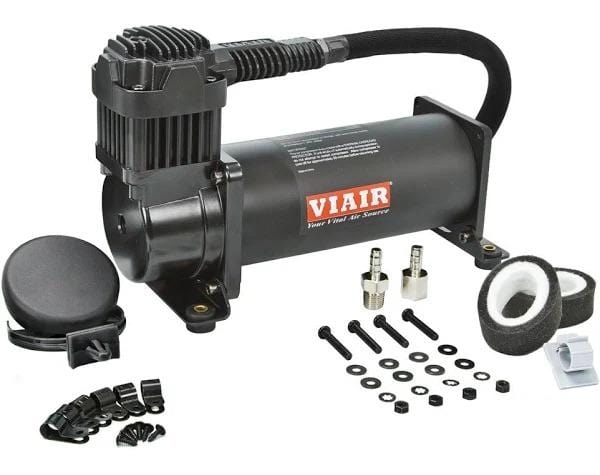

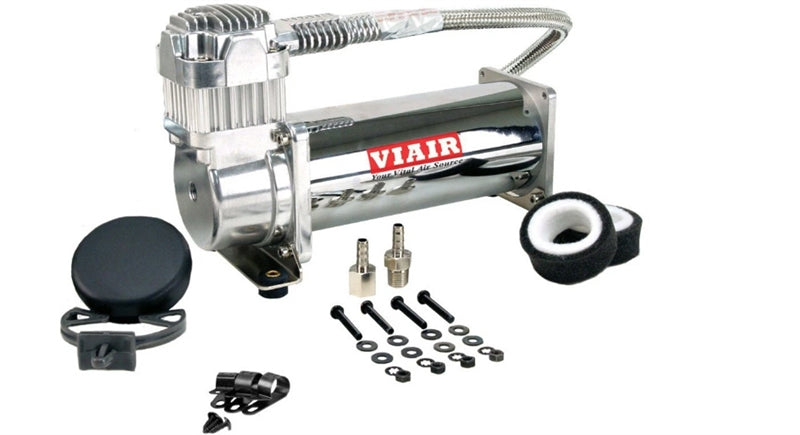

Viair 444C Air Compressor (Chrome or Stealth Black)
Viair 444C Air Compressor (Chrome or Stealth Black)
Viair 444c Compressor
All 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.
Included Parts:
- 1 444C Compressors
- Intercooler Head (Patents Pending)
- 1 Air Filter Assemblies
- 1 Remote Filter Mounting Brackets
- 1 Set of Remote Mount Fittings
- 1 Set of Spare Air Filter Elements
- 4 Sets of Nuts, Bolts, Washers and Lock Washers
- 1 Stainless Steel Braided Leader Hoses with Inline Check Valve
- 3 Airline Clips with Included Hardware
Compressor Specs:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 21 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.87"L x 4.2"W x 7.06"H
- Net Weight: 11 lbs.
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 32 sec. (± 10 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
165 to 200 PSI | 2 min. 50 sec. (± 05 sec.) |
