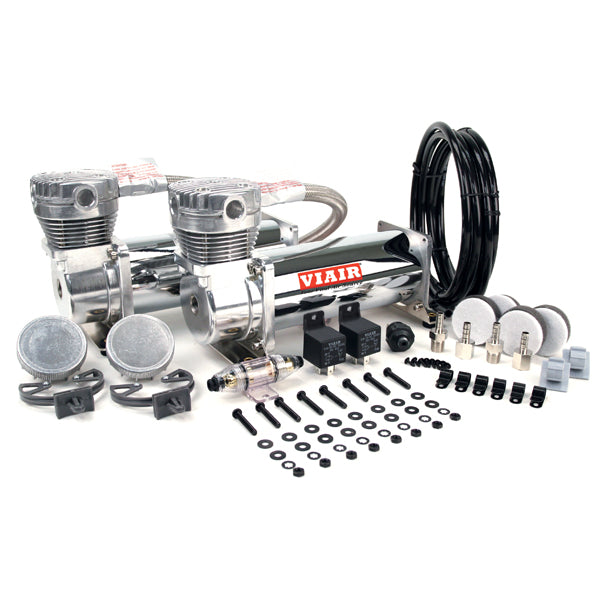

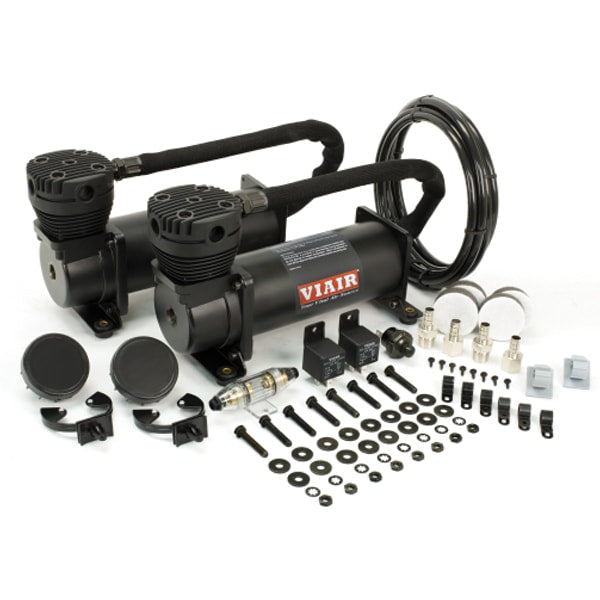

Viair 480C Dual Air Compressor (Chrome or Stealth Black)
Viair 480C Dual Air Compressor (Chrome or Stealth Black)
Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Chrome or Stealth Black air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.
FEATURES |
---|
– (2) 480C (Chrome or Stealth Black) Air Compressors w/Thermal Overload Protectors |
– (2) Air Filter Assemblies |
– (2) Remote Mount Brackets |
– (2) Sets of Remote Mount Fittings |
– (2) Sets of Spare Air Filter Elements |
– (2) Leader Hose Clips |
– (6) Air Line Clips with Included Hardware |
– (8) Sets of Nuts, Bolts, Washers and Lock Washers |
– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) |
– (2) 40-Amp Relays |
– (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off) |
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
– Air Line (For Remote Mount Filter Installation) |
SPECIFICATIONS |
---|
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
– Max. Working Pressure: 200 PSI |
– Max. Air Tank Size: 10.0 Gallon |
– Combined Max. Amp Draw: 46-Amps |
– Ingress Protection Rating: IP67 |
– Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit) |
– Net Weight: 22.10 lbs. |
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 2 min. 22 sec. (± 10 sec.) |
165 to 200 PSI | 38 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 25 sec. (± 05 sec.) |
10.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
